ULD - Unit Load Devices and Contours

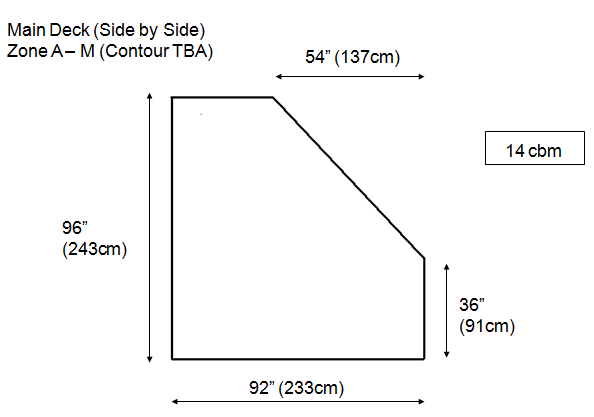

P6P - Q6 - Side By Side Contour - A330-200F

Applicable Aircraft - A330-200F









Code Base
Type
Classification Class
Type
Contour Dimension
(LxWxH, cm)
Usable Dimensions
(LxWxH, cm)
Door Dimension
(LxH, cm)
Volume
(cbm)
Estimate
Max Gross Weight (Kg)

Estimate
Tare Weight (Kg)

Note
P6P
P6A
P6C
P6Q
PMA
PMC
PMP
PQP
P6P     Q6 317x244x248 307x233x237   14 6,800 105 A330F (SBS)
