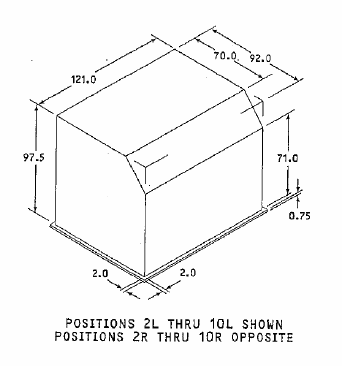

P6P - Q6 - MD-11F/CF & DC/MD10F, Position 2-10L/R
Applicable Aircraft - MD-11F & DC/MD10F
ULD - Unit Load Devices
and Contours
P6P - Q6 - MD-11F/CF &
DC/MD10F, Position 2-10L/R
Applicable Aircraft - MD-11F &
DC/MD10F
| Code | Base Type |
Classification | Class Type |
Contour | Dimension (LxWxH, cm) |
Usable
Dimensions (LxWxH, cm) |
Door Dimension (LxH, cm) |
Volume (cbm) |
Estimate Max Gross Weight (Kg) |
Estimate |
Note |
| P6P P6A P6C P6Q PMA PMC PMP PQP |
P6P | Q6 | 317x244x244 | 307x233x233 | 16 | 6,800 | 105 | MD-11F/CF & DC/MD10F, Position 2-10L/R |
