ULD - Unit Load Devices and Contours

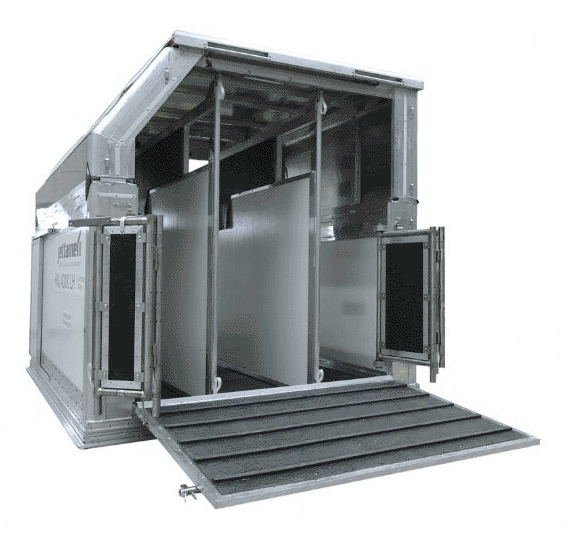

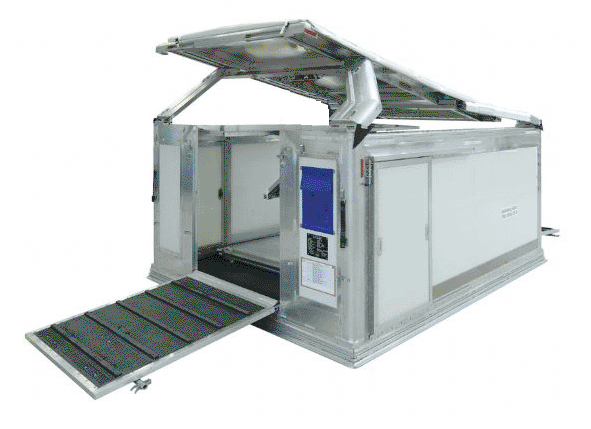

HMJ - Droptop

Applicable Aircraft - A330F, A380F, B747F, B777F, DC-10F and MD-11F














Code Base
Type
Classification Class
Type
Contour Dimension
(LxWxH, cm)
Usable Dimensions
(LxWxH, cm)
Door Dimension
(LxH, cm)
Volume
(cbm)
Estimate
Max Gross Weight (Kg)

Estimate
Tare Weight (Kg)

Note
HMJ         317x244x244       6,800 1080 Horse Stall Droptop

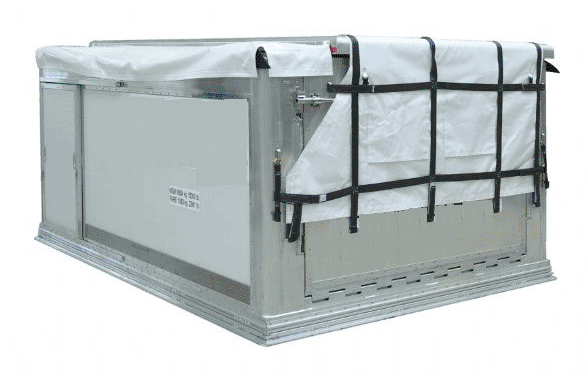

Note: The HMJ droptop can fold down to a height of 162cm for shipment on lower deck positions.
