AKN
Applicable Aircraft -
A300F, A310F, A330F, A380F, B747F, B767F, B777F, DC-10F, L1011F and MD11F
ULD - Unit Load Devices
and Contours
AKN
Applicable Aircraft -
A300F, A310F, A330F, A380F, B747F, B767F, B777F, DC-10F, L1011F
and MD11F
| Code | Base Type |
Classification | Class Type |

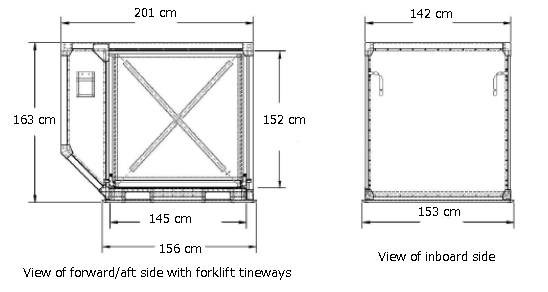

Contour | Dimension (LxWxH, cm) |
Usable
Dimensions (LxWxH, cm) |
Door Dimension (LxH, cm) |
Volume (cbm) |
Estimate Max Gross Weight (Kg) |
Estimate |
Note |
| AKN AVN DKN DVN XKN |
LD-3 | 8 | 201x153x163 | 193x142x152 | 145x152 | 3 | 1,350 | 80 | Forklift |
