Payload-Range
Loading Specification

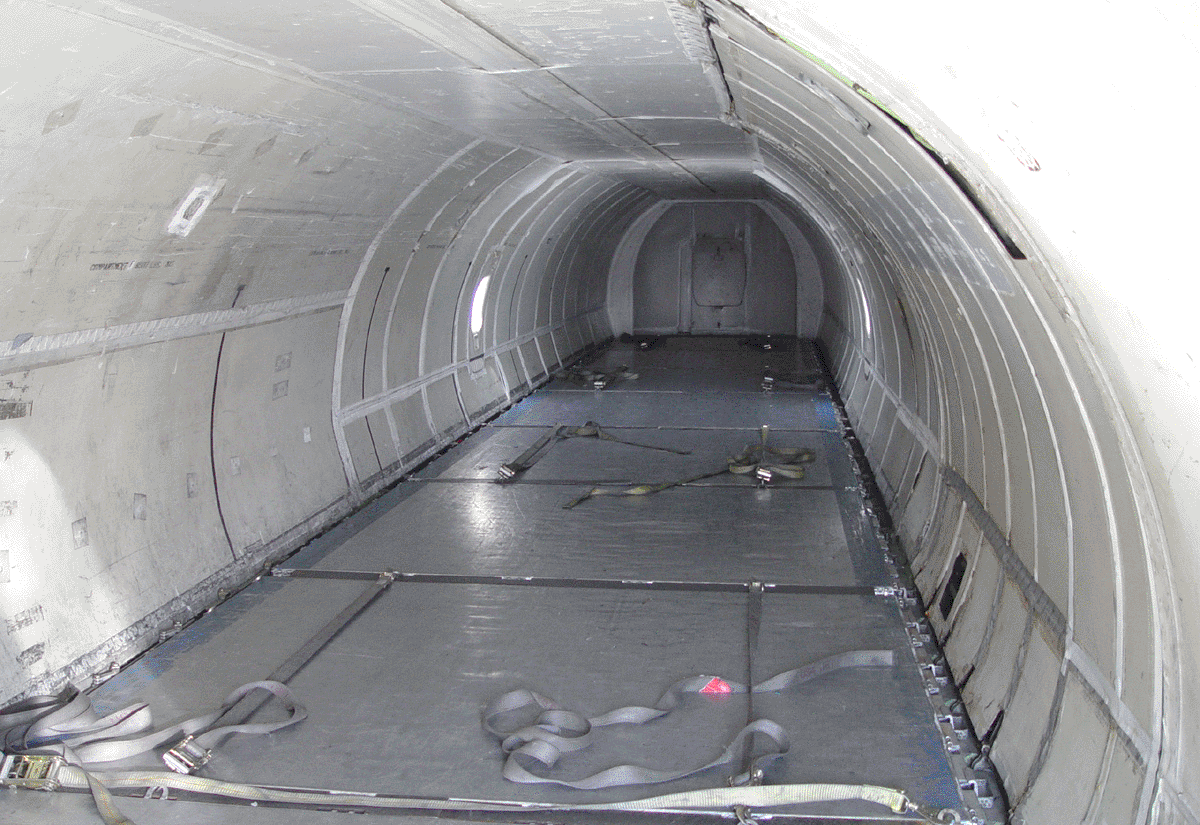

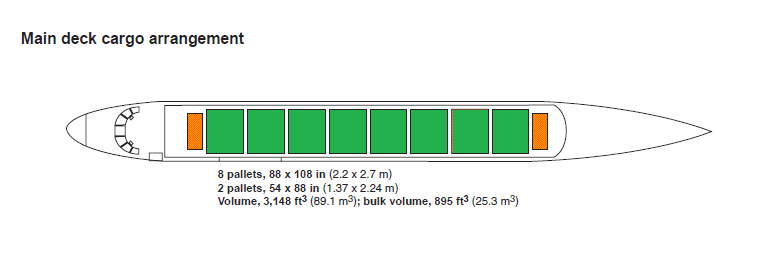

Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck (Orange Color)
Refer to above Main Deck (Green Color)
or
Cargo Freighter
Specifications
DC-9-30F
Payload-Range
Loading Specification
Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck (Orange
Color)
Refer to above Main Deck (Green Color)
or
| Payload (Tons) | 17,000 |
| Volume (cbm) | 114 |

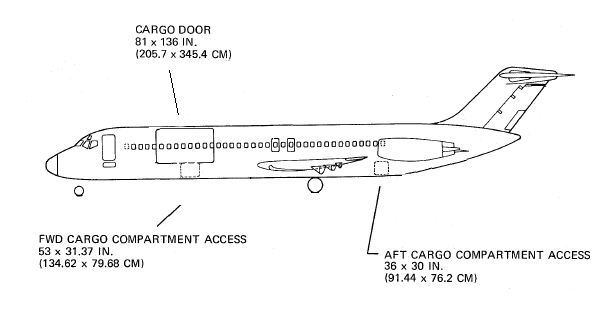

| Main Door Dimension (LxH, cm) | 345x205 |
| Forward Door Dimension (LxH, cm) | 134x79 |
| After Door Dimension (LxH, cm) | 91x76 |
| Max Range (km) | 1,324 |
| Cruise speed (km/h) | 900 |
| MTOW (kg) | 54,885 |
| MZFW (kg) | 44,679 |
| Crew & Cargo Attendants | 2 |
| Max fuel capacity (kg) | 19,078 |
| Average fuel burn (tons/h) | 3.5 |
| Minimum runway (m) | 2,271 |
