Cargo Freighter
Specifications
DC-8-71CF

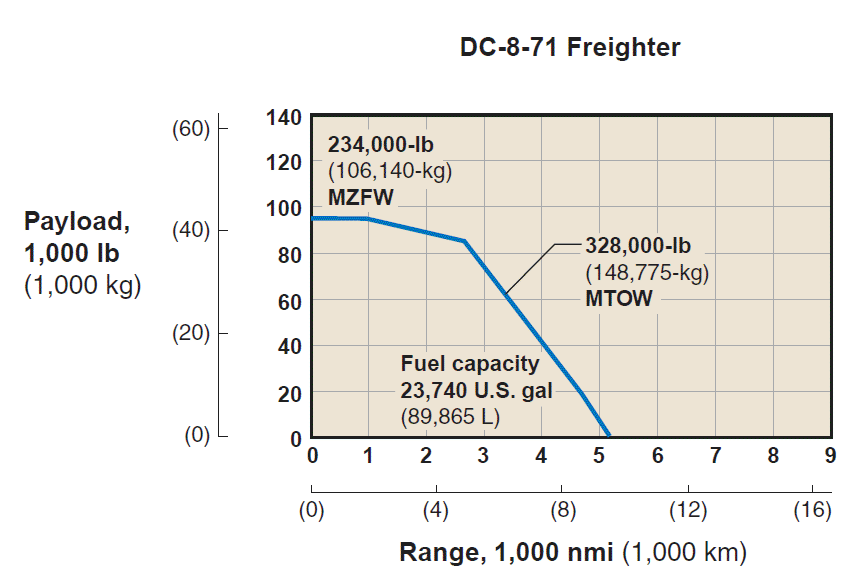

Payload-Range
Loading Specification
Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck (Orange
color)
Refer to above Main Deck (Red color)
| Payload (Tons) | 42,500 |
| Volume (cbm) | 295 |
| Main Door Dimension (LxH, cm) | 355x215 |
| Bulk Door Dimension (LxH, cm) | 2@161x138 2@111x91 |
| Max Range (km) | 5,185 |
| Cruise speed (km/h) | 888 |
| MTOW (kg) | 148,775 |
| MZFW (kg) | 106,140 |
| Crew & Cargo Attendants | 3 |
| Max fuel capacity (kg) | 89,865 |
| Average fuel burn (tons/h) | 6 |
| Minimum runway (m) | 2,200 |
