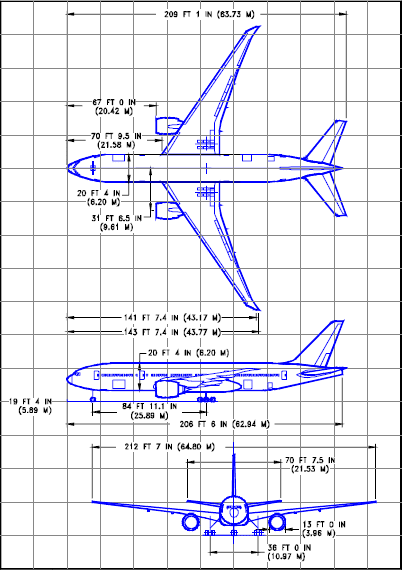

Cargo Freighter Specifications

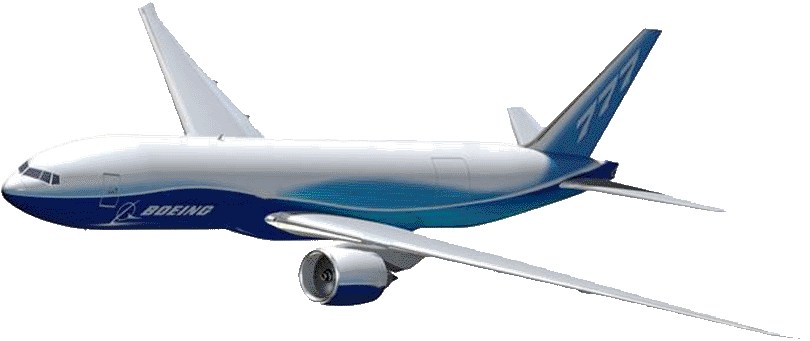

B777-200F






Payload-Range

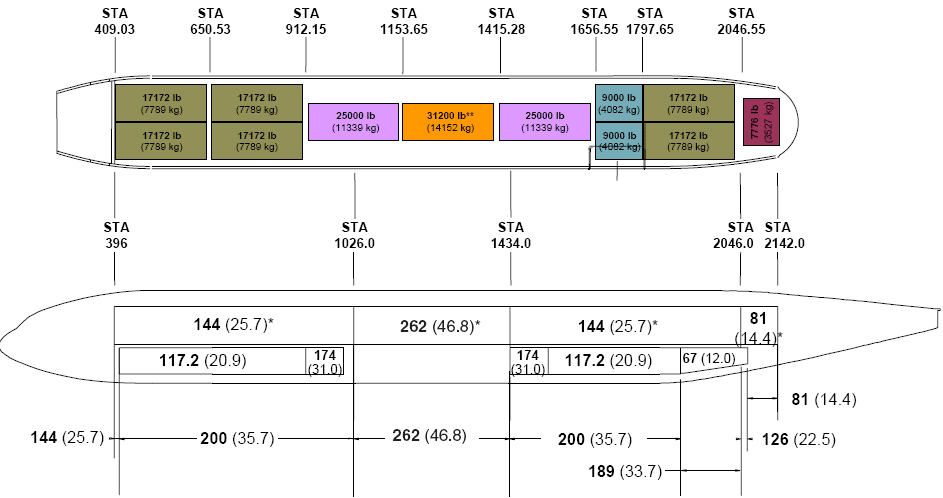

Loading Specification

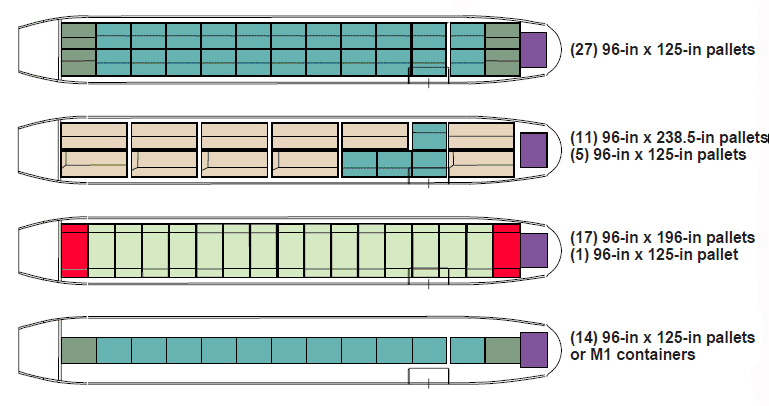

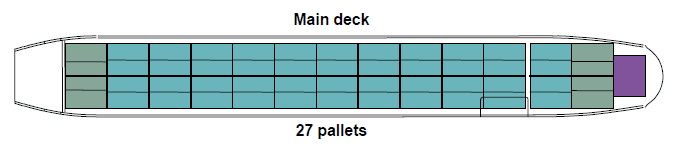

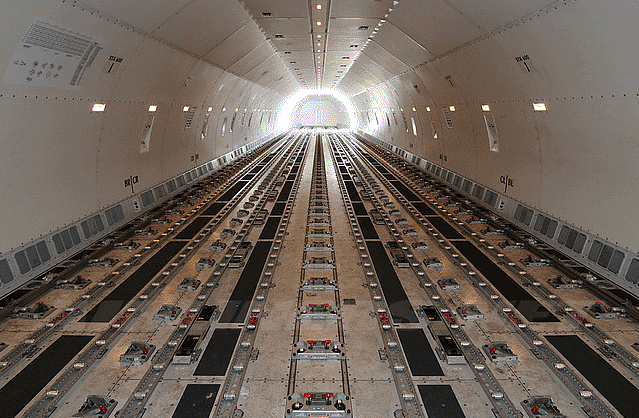

Main Deck

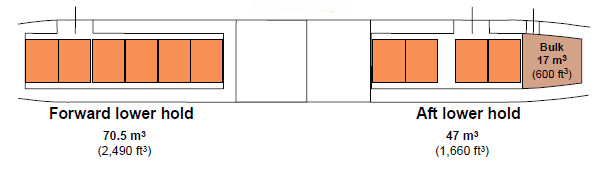

Lower Deck


ULD Reference

Refer to above Main Deck (Green color)
P6P - Q6 - B777F Only
Refer to above Main Deck (Blue color)
P6P - Q7 - B777F Only
Refer to above Main Deck (Red color)
PRA - 116" Inch Height
Refer to above Main Deck (Light Green color)
PRA - 118" Inch Height
Refer to above Main Deck (Purple color)
P6P - Q6
Refer to above Main Deck (Yellow color)
PGA - Q6 - B777F
Refer to above Main Deck (Pink color)
PGA - Q7 - B777F

Refer to above Lower Deck (Light Blue color)
P6P - LDP



Payload (Tons) 103,000
Volume (cbm) 580

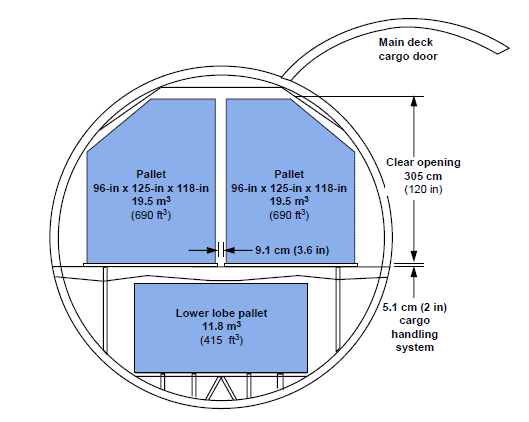

Main Door Dimension (LxH, cm) 372x305
Bulk Door Dimension (LxH, cm) 90x121
Max Range (km) 9,070
Cruise speed (km/h) 905
MTOW (kg) 347,800
MZFW (kg) 248,110
Crew & Cargo Attendants 2
Max fuel capacity (kg) 181,280
Average fuel burn (tons/h) 13
Minimum runway (m) 2,970
