Cargo Freighter Specifications



Loading Specification

Main Deck

Lower Deck

ULD Reference

Refer to above Main Deck

Payload (Tons) 29,000
Volume (cbm) 187

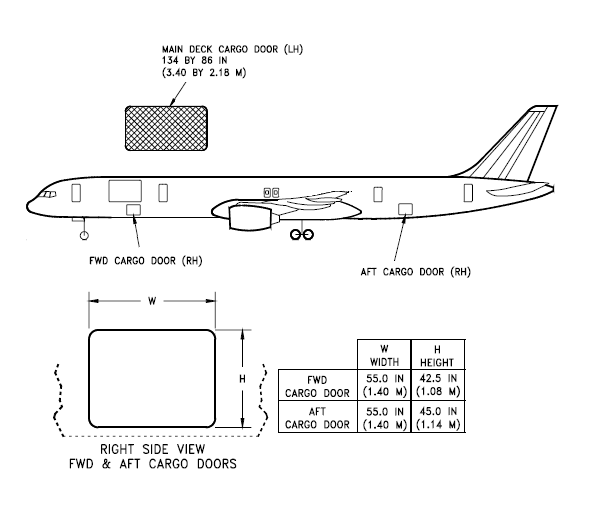

Main Door Dimension (LxH, cm) 340x218
Forward Door Dimension (LxH, cm) 140x108
After Door Dimension (LxH, cm) 140x114
Max Range (km) 5,835
Cruise speed (km/h) 950
MTOW (kg) 116,650
MZFW (kg) 90,700
Crew & Cargo Attendants 2
Max fuel capacity (kg) 42,680
Average fuel burn (tons/h) 4.7
Minimum runway (m) 1,814
