Payload-Range
Loading Specification
ULD Reference
Refer to above Main Deck (Pink color)
Refer to above Main Deck (Orange color)
Refer to above Main Deck (Green color)
and

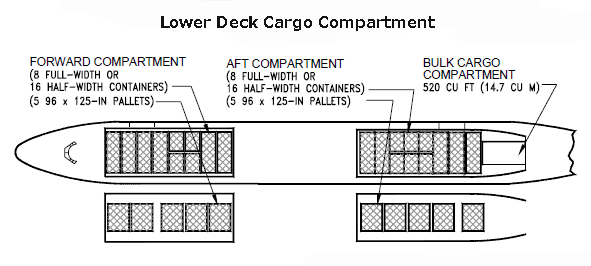

Refer to above Lower Deck (Gray color)
Cargo Freighter
Specifications
B747-400F
Payload-Range
Loading Specification
ULD Reference
Refer to above Main Deck (Pink
color)
Refer to above Main Deck (Orange color)
Refer to above Main Deck (Green color)
and
Refer to above Lower Deck (Gray color)
| Payload (Tons) | 113,000 |
| Volume (cbm) | 615 |
| Main Door Dimension (LxH, cm) | 341x305 |
| Nose Door Dimension (LxH, cm) | 341x310 |
| Bulk Door Dimension (LxH, cm) | 112x120 |
| Max Range (km) | 8,334 |
| Cruise speed (km/h) | 967 |
| MTOW (kg) | 396,900 |
| MZFW (kg) | 277,000 |
| Crew & Cargo Attendants | 2 |
| Max fuel capacity (kg) | 203,520 |
| Average fuel burn (tons/h) | 14 |
| Minimum runway (m) | 3,600 |
