Payload-Range
Loading Specification
Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck
Cargo Freighter
Specifications

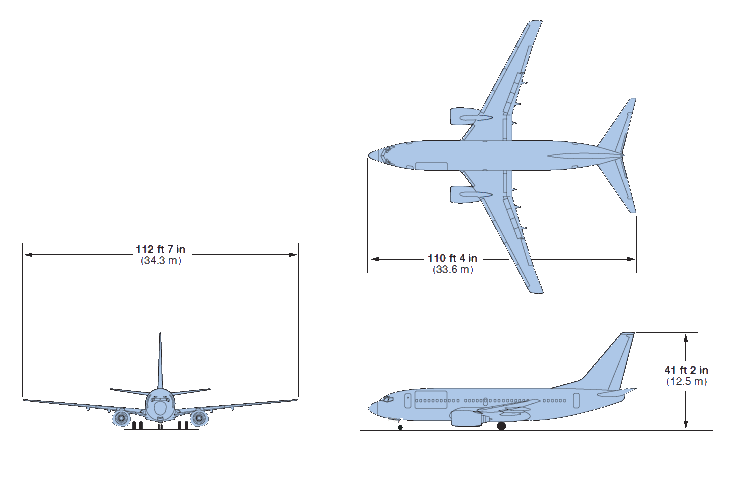

B737-700CF
Payload-Range
Loading Specification
Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck
| Payload (Tons) | 18,200 |
| Volume (cbm) | 105 |
| Main Door Dimension (LxH, cm) | 340x219 |
| Forward Door Dimension (LxH, cm) | 122x89 |
| After Door Dimension (LxH, cm) | 122x84 |
| Max Range (km) | 5,555 |
| Cruise speed (km/h) | 828 |
| MTOW (kg) | 77,560 |
| MZFW (kg) | 57,150 |
| Crew & Cargo Attendants | 2 |
| Max fuel capacity (kg) | 26,020 |
| Average fuel burn (tons/h) | 2.4 |
| Minimum runway (m) | 2,040 |
