Payload-Range
Loading Specification
Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck (Orange Color)
or
Refer to above Main Deck (Green Color)
Refer to above Main Deck (Light Blue Color)
or
Cargo Freighter
Specifications
B737-300F
Payload-Range
Loading Specification

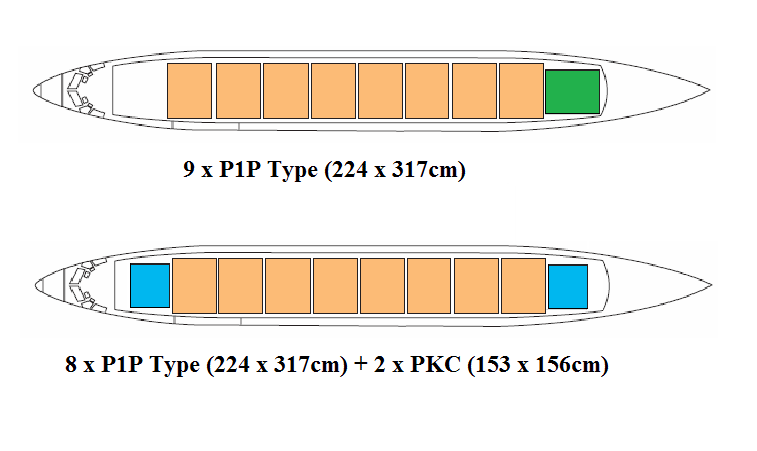

Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck (Orange
Color)
or
Refer to above Main Deck (Green Color)
Refer to above Main Deck (Light Blue Color)
or
| Payload (Tons) | 15,000 to 18,000 |
| Volume (cbm) | 130 |
| Main Door Dimension (LxH, cm) | 350x230 |
| Forward Door Dimension (LxH, cm) | 122x130 |
| After Door Dimension (LxH, cm) | 124x122 |
| Max Range (km) | 3,028 |
| Cruise speed (km/h) | 820 |
| MTOW (kg) | 63,276 |
| MZFW (kg) | 49,714 |
| Crew & Cargo Attendants | 2 |
| Max fuel capacity (kg) | 20,100 |
| Average fuel burn (tons/h) | 2.6 |
| Minimum runway (m) | 2,280 |
