Payload-Range
Loading Specification
Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck (Orange Color)
or
Cargo Freighter
Specifications

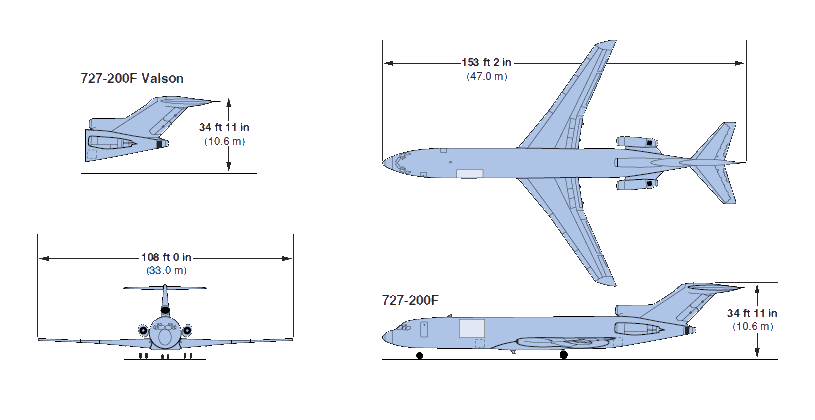

B727-200F
Payload-Range
Loading Specification
Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck (Orange
Color)
or
| Payload (Tons) | 24,000 to 26,500 |
| Volume (cbm) | 182 |
| Main Door Dimension (LxH, cm) | 340x218 |
| Forward Door Dimension (LxH, cm) | 137x107 |
| After Door Dimension (LxH, cm) | 137x112 |
| Bulk Door Dimension (LxH, cm) | 122x81 |
| Max Range (km) | 2,570 |
| Cruise speed (km/h) | 953 |
| MTOW (kg) | 92,126 |
| MZFW (kg) | 70,308 |
| Crew & Cargo Attendants | 3 |
| Max fuel capacity (kg) | 30,677 |
| Average fuel burn (tons/h) | 5.5 |
| Minimum runway (m) | 2,500 |
