Cargo Freighter
Specifications

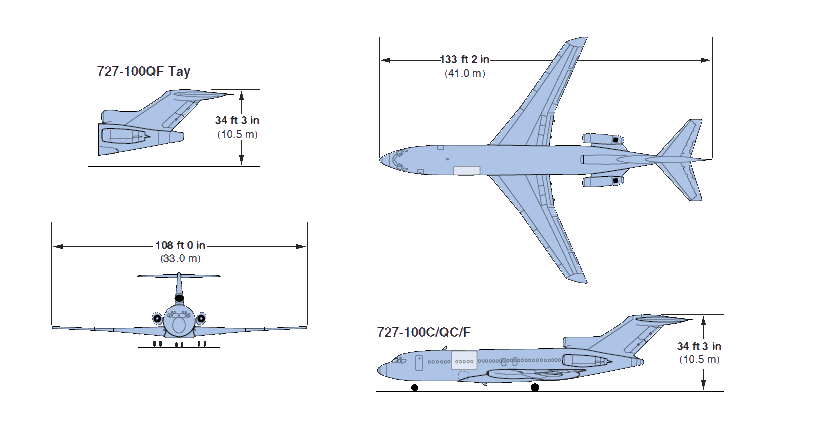

B727-100F
Payload-Range
Loading Specification

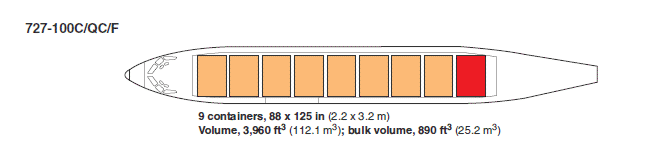

Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck (Orange
Color)
or
Refer to above Main Deck (Red Color)
| Payload (Tons) | 21,000 |
| Volume (cbm) | 135 |
| Main Door Dimension (LxH, cm) | 340x218 |
| Forward Door Dimension (LxH, cm) | 122x89 |
| After Door Dimension (LxH, cm) | 124x89 |
| Max Range (km) | 2,229 |
| Cruise speed (km/h) | 830 |
| MTOW (kg) | 76,839 |
| MZFW (kg) | 59,875 |
| Crew & Cargo Attendants | 3 |
| Max fuel capacity (kg) | 29,269 |
| Average fuel burn (tons/h) | 5.8 |
| Minimum runway (m) | 2,500 |
