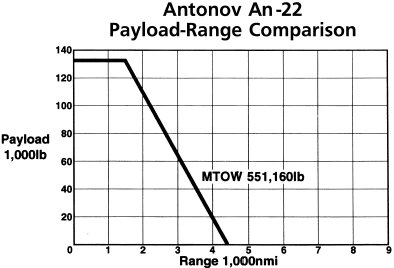

Payload-Range

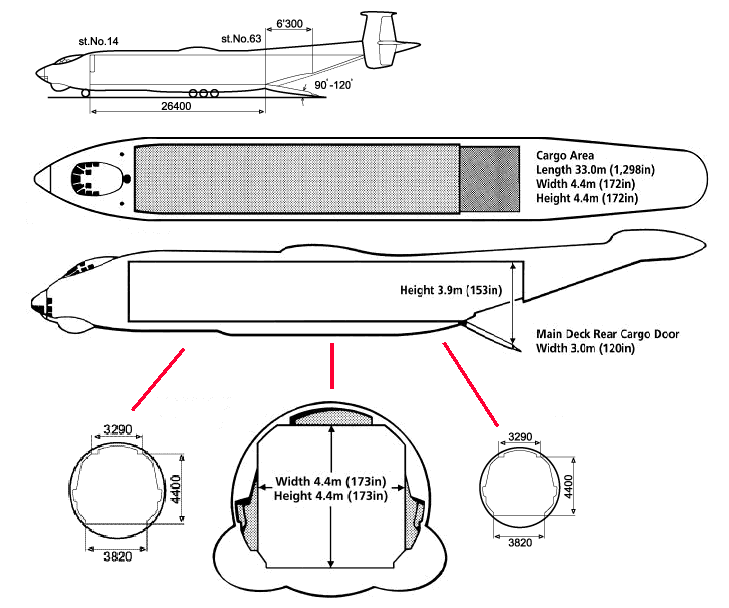

Loading Specification
Cargo Freighter
Specifications
AN22
Payload-Range
Loading Specification
| Payload (Tons) | 80,000 |
| Volume (cbm) | 700 |

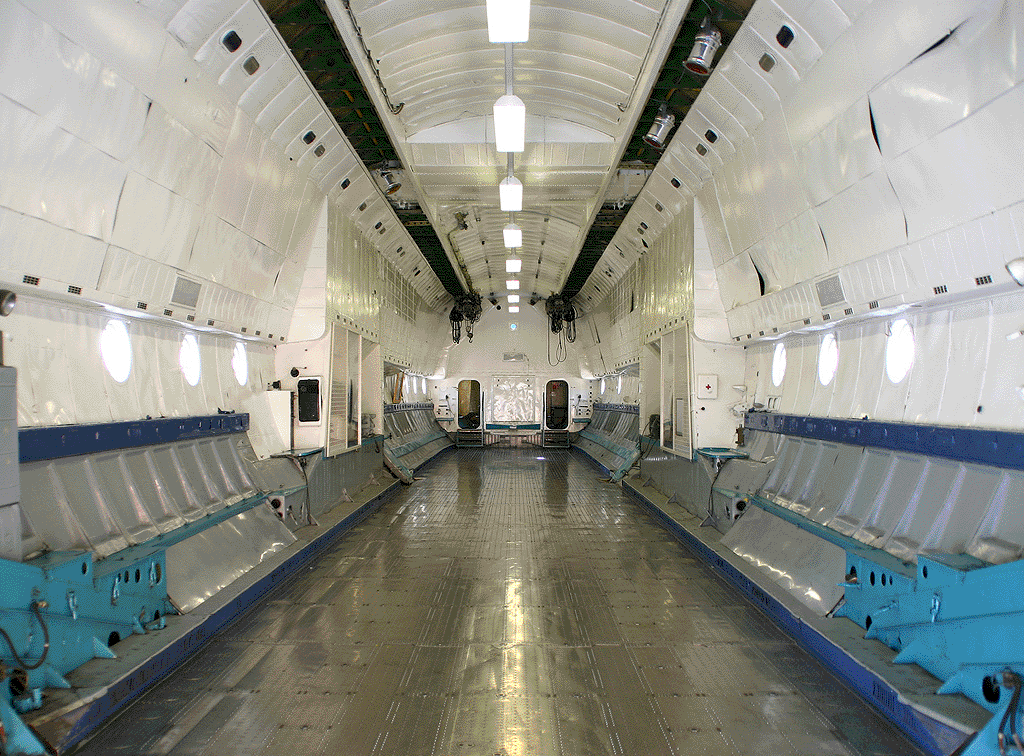

| Cargo Cabin Dimension (LxWxH, cm) | 2,640x382x440 |
| Tail Door Dimension (LxH, cm) | 300x390 |
| Max Range (km) | 5,000 |
| Cruise speed (km/h) | 740 |
| MTOW (kg) | 250,000 |
| MZFW (kg) | 225,000 |
| Crew & Cargo Attendants | 6+14 |
| Max fuel capacity (kg) | 43,000 |
| Average fuel burn (tons/h) | 7.5 |
| Minimum runway (m) | 1,100 |
