Payload-Range
Loading Specification
Cargo Freighter
Specifications
AN124
Payload-Range

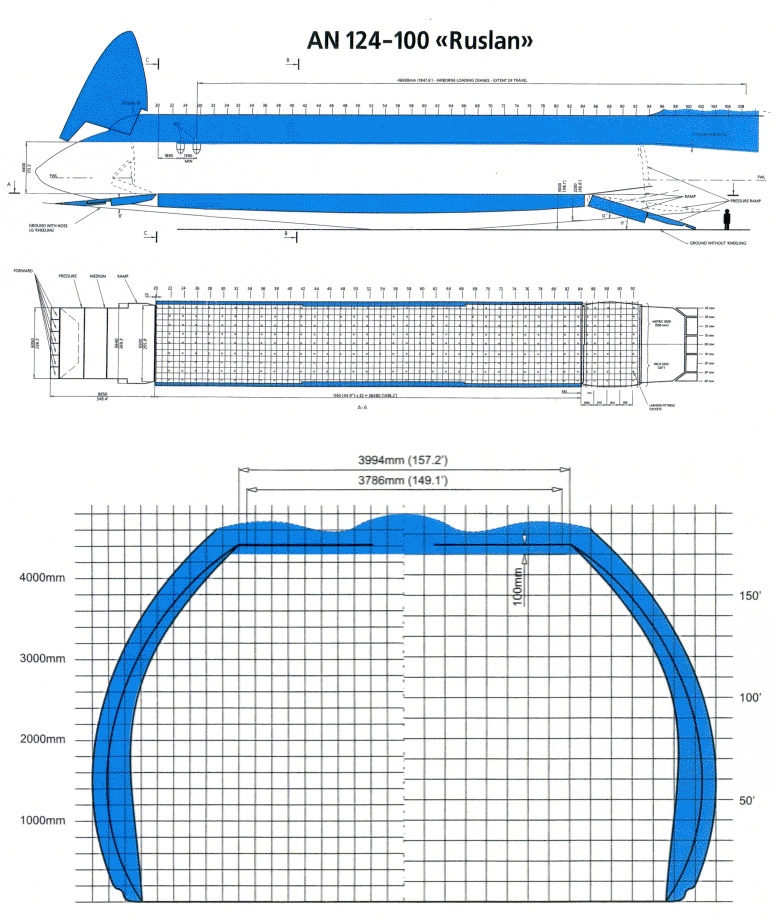

Loading Specification
| Payload (Tons) | 120,000 |
| Volume (cbm) | 900 |
| Cargo Cabin Dimension (LxWxH, cm) | 3,650x640x440 |
| Main Door Dimension (LxH, cm) | 640x440 |
| Tail Door Dimension (LxH, cm) | 640x440 |
| Max Range (km) | 16,500 |
| Cruise speed (km/h) | 865 |
| MTOW (kg) | 392,000 |
| MZFW (kg) | 301,000 |
| Crew & Cargo Attendants | 6+14 |
| Max fuel capacity (kg) | 213,714 |
| Average fuel burn (tons/h) | 17.5 |
| Minimum runway (m) | 3,000 |
